AI UX Case Study

Designing Multimodal Image Refinement for GenAI Tools

Enabling precise control in AI image editing through multimodal interaction (text + visual input).

This project combines user research, interaction design, and prototyping to create a more controllable AI image editing workflow.

Demo

Users combine visual marks with text to iteratively refine AI-generated images, improving control over both spatial and semantic edits.

Challenge

Text-only refinement makes local and spatial edits hard to communicate. Users often need to point to a region, preserve a specific element, or indicate a subtle visual change—needs that text alone does not support well.

My contribution

Led interaction design and evaluation of a multimodal AI image refinement system — defined interaction model, built prototype, and validated with users.

Research contribution

Through a comparative study with 30 designers and design students, I identified how visual and combined input improve clarity, control, and usability in AI image refinement workflows.

Watch demo Read paper

Overview

Most generative AI image tools are strong at producing outputs, but much weaker at helping users refine results toward a specific visual intent. This project focuses on the interaction layer: how refinement can become more precise, understandable, and controllable through better interface and workflow design.

The central design question was not “How do we make the model more powerful?” but “How do we help users express intent when words are not enough?”

Problem

Refinement is the weak point in AI image workflows

AI image editing relies heavily on text prompts, which fail for spatial and local edits. As a result, users are forced to describe visual intent indirectly, repeatedly rephrase prompts, and rely on trial and error instead of a controlled editing workflow.

Hard to point at what should change

Users can describe an edit, but they cannot naturally indicate where, how far, or in what direction a change should happen.

Too much trial and error

Refinement becomes a prompt-writing exercise instead of a controlled design workflow, especially for local or spatial edits.

Users and context

Designing for iterative creative workflows

This project focuses on professional and semi-professional creative workflows, where generation is only one step in a longer design process. Users compare alternatives, refine details, and iteratively shape outputs. In this context, refinement—not one-shot prompting—is the core UX challenge.

My role

I translated user insight into interaction design

I identified the design opportunity, developed the interaction model, built the prototype, and evaluated how different input modes support control and refinement. My role was to translate user needs into concrete interaction patterns, interface behaviors, and workflow decisions.

Process

From refinement problem to a tested interaction model

01 · Understand

Defined the refinement problem

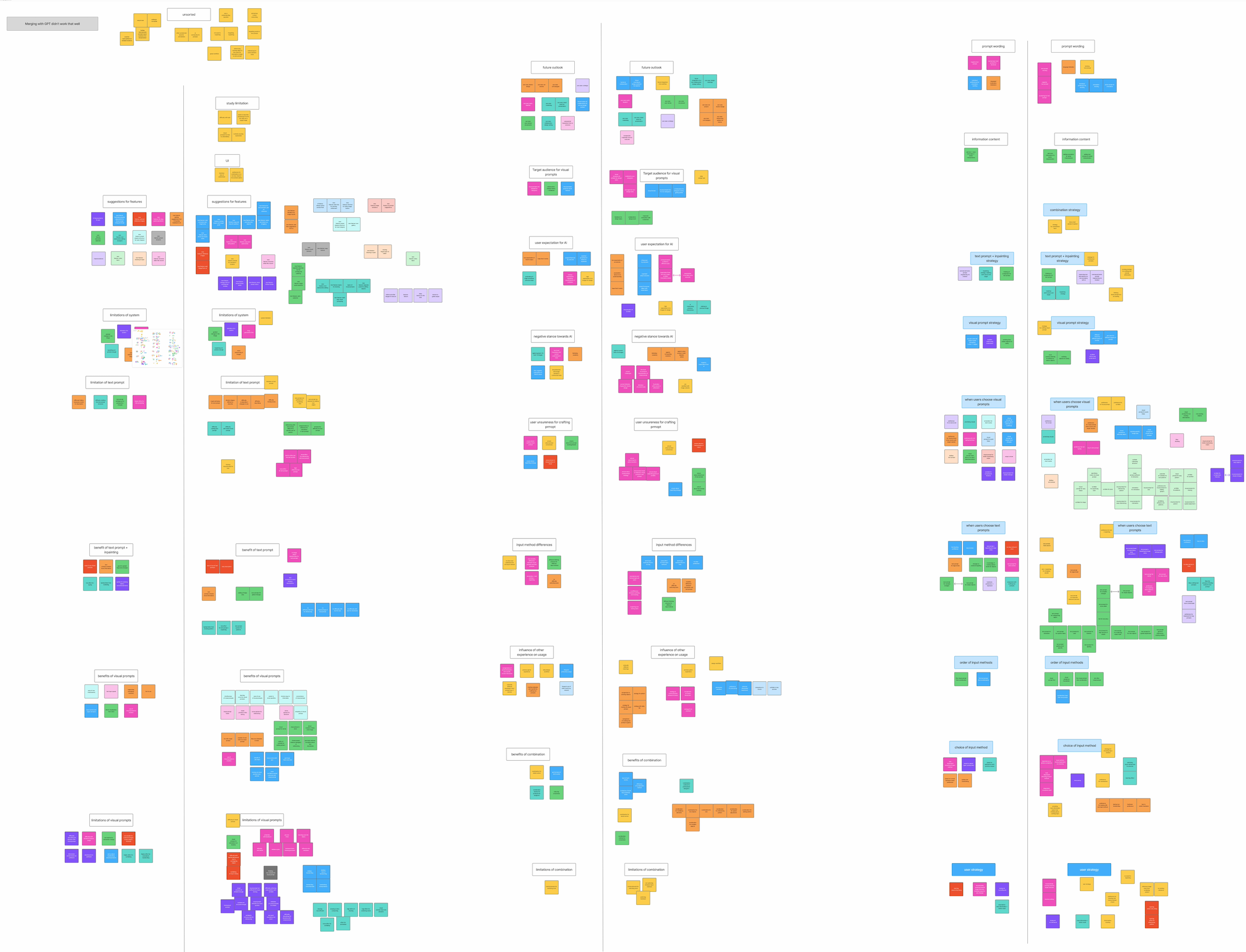

Identified that the main friction point was not image generation itself, but the difficulty of specifying targeted edits during refinement.

02 · Explore

Explored three interaction approaches

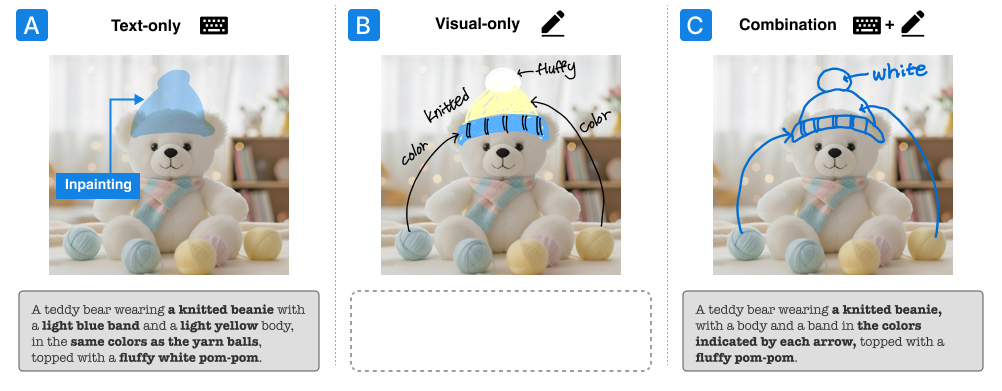

Compared text-only, visual-only, and combined interaction approaches to understand how each mode supports or limits users’ ability to express intent.

03 · Prototype

Built a working multimodal system

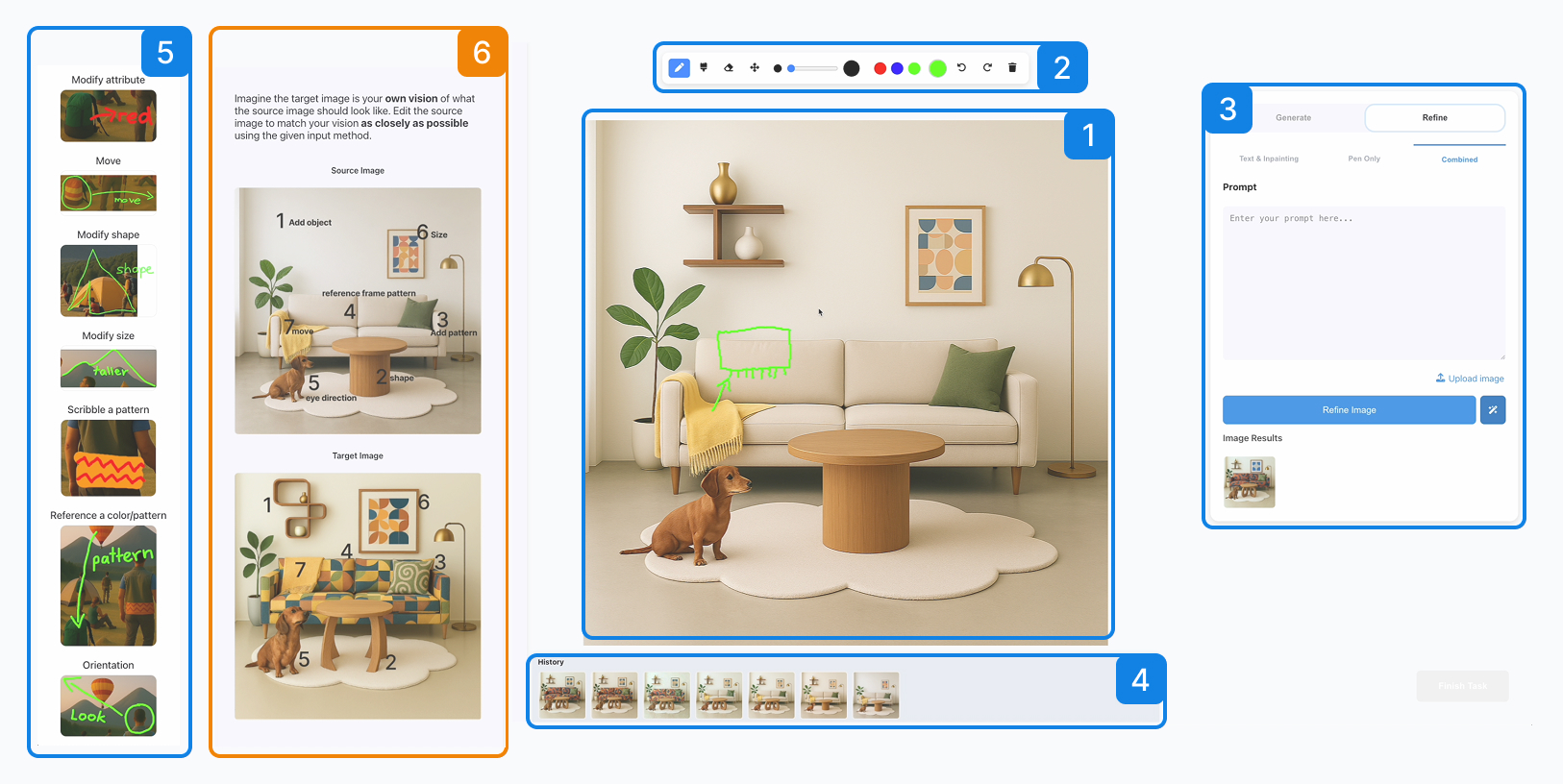

Built a prototype that combines direct visual input, text prompting, and iterative refinement within a single workflow.

04 · Validate

Tested clarity, control, and iteration

Tested how different input combinations affect users’ ability to express intent, control results, and refine outputs across iterations.

Final solution

A multimodal workflow combining language and visual input

The final design supports iterative refinement by combining direct visual input with text-based instructions in a single workflow, allowing users to guide both spatial and semantic changes more precisely.

Text + scribbles

Users combine verbal instructions with rough marks that indicate where a change should happen, reducing the need to describe spatial edits entirely in words.

Text + annotations

Written labels clarify which elements or regions should be changed, preserved, or referenced during a refinement step.

Mode comparison

The interface makes it possible to compare text-only and multimodal strategies directly, helping users choose the interaction style that works best for each refinement task.

Key design decisions

Five decisions that shaped the interaction experience

1. Let people point, not only describe

Visual marks reduce the need to translate spatial intent into language. Arrows, circles, and quick sketches let users communicate changes directly on the image.

2. Design for refinement, not only generation

The workflow focuses on editing existing results rather than restarting from scratch, reflecting how creative work actually unfolds in iterative design practice.

3. Support both verbal and visual expression

Combining language with visual input supports a more natural expression of intent, especially when users think visually rather than verbally.

4. Treat input modes as complementary

Text, scribbles, and annotations are treated as complementary inputs, each supporting a different kind of editing intent.

5. Keep the interface lightweight

The interface keeps tools lightweight and close to the canvas, making expressive interaction possible without adding unnecessary cognitive load.

Validation

Testing whether multimodal input improves refinement

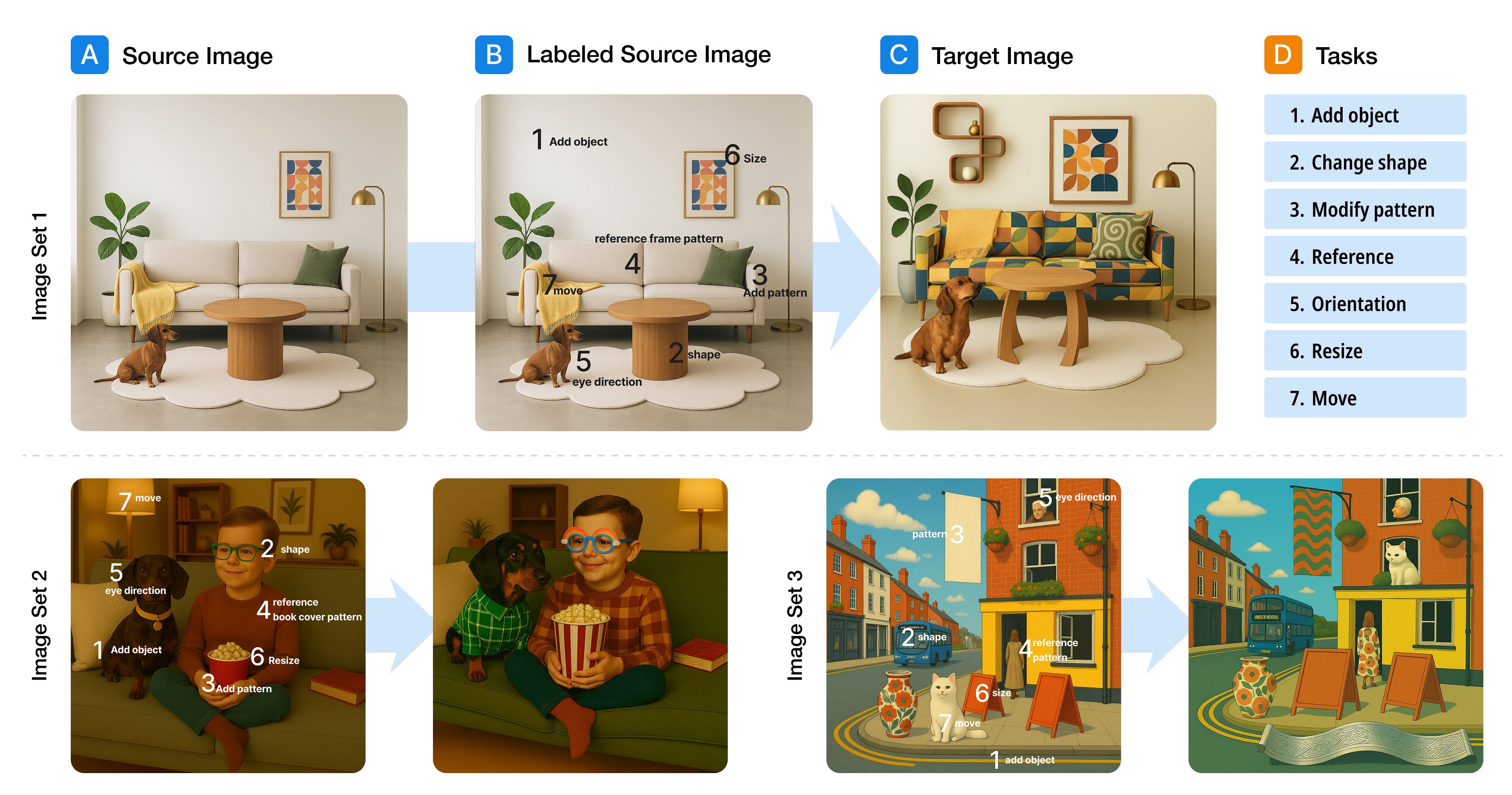

I evaluated the prototype with designers and design students, comparing text-only, visual-only, and combined interaction. The goal was to identify which interaction patterns make refinement clearer, faster, and easier to control.

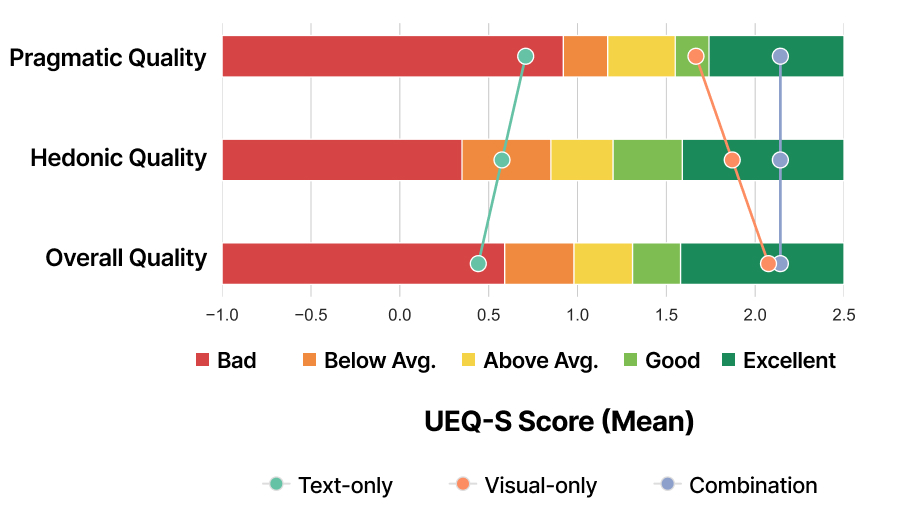

USE-S results — Visual and combined input outperformed text-only interaction on key measures of refinement quality and user experience.

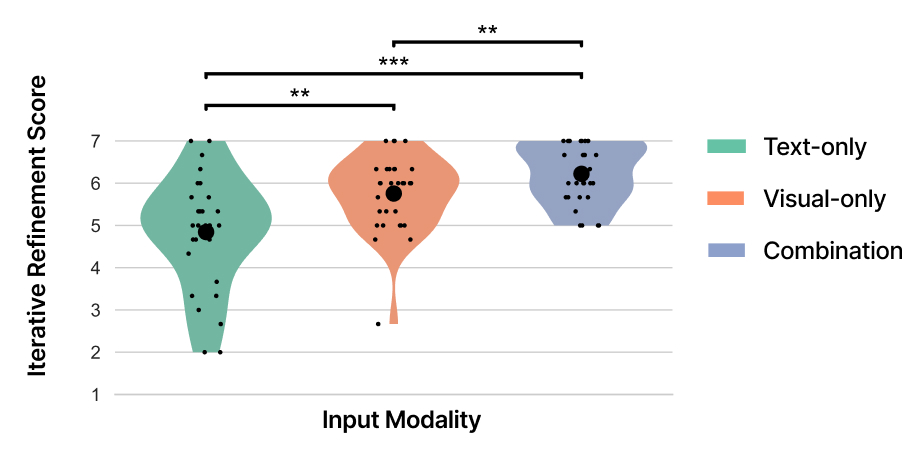

Iterative refinement results — Users often began with quick visual marking, then moved into more detailed multimodal refinement.

Visual input improved spatial edits

Users expressed movement, placement, and size changes more directly with visual marks than with text-only prompting.

Combined input delivered the best overall experience

Combining text and visual input balanced semantic detail with spatial precision, creating the strongest overall refinement experience.

Users adopted a visual-first workflow

Participants often started with quick visual marks to establish intent, then added text to refine details and narrow the edit.

Outcomes

What this project showed

Controllability in AI systems is an interaction design problem

Refinement is not only a model problem. Interaction design strongly shapes whether users can effectively guide and control the output.

Multimodal input broadens how people can express intent

Direct visual input reduces friction when users want to communicate something spatial, local, or difficult to verbalize.

These findings suggest that future AI creative tools should integrate direct visual input to support precise and controllable editing workflows.

Reflection

What I took away

This project shifted how I think about AI UX. The challenge is not only improving model capability, but designing how users communicate intent during refinement. Supporting controllability requires new interaction patterns—not just better prompts.
